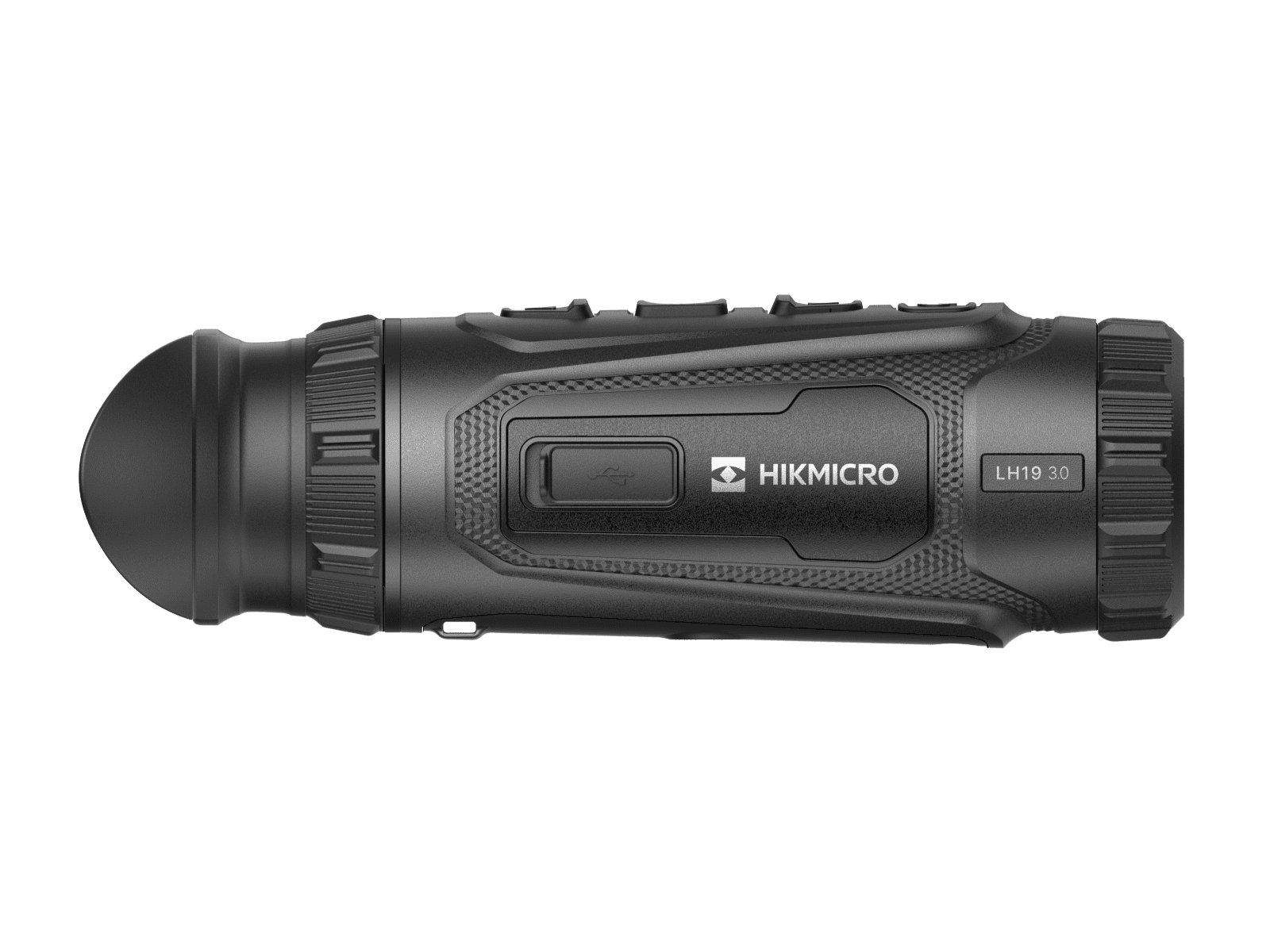

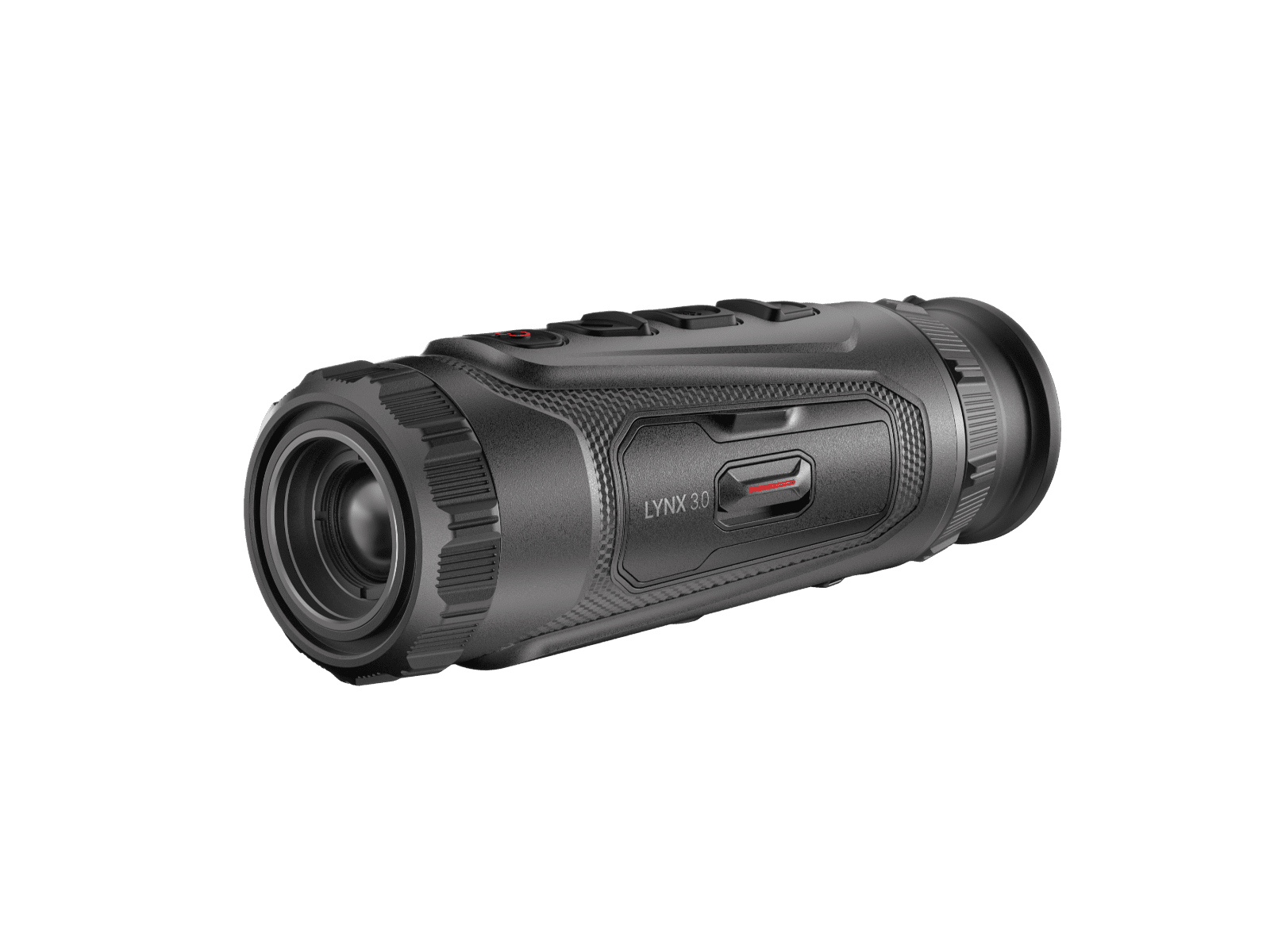

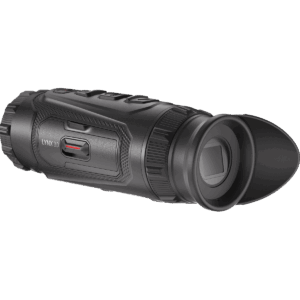

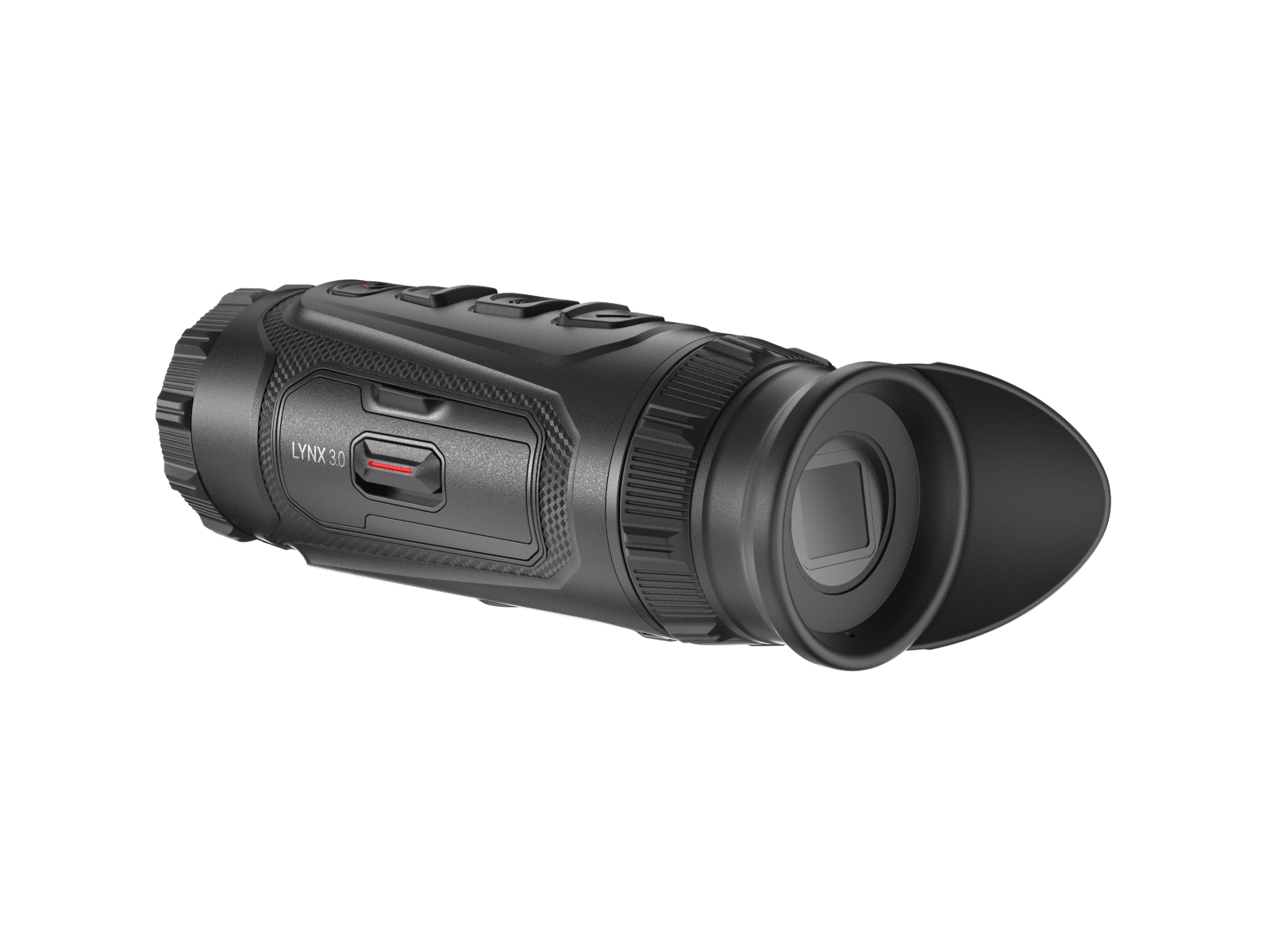

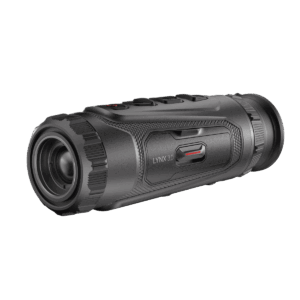

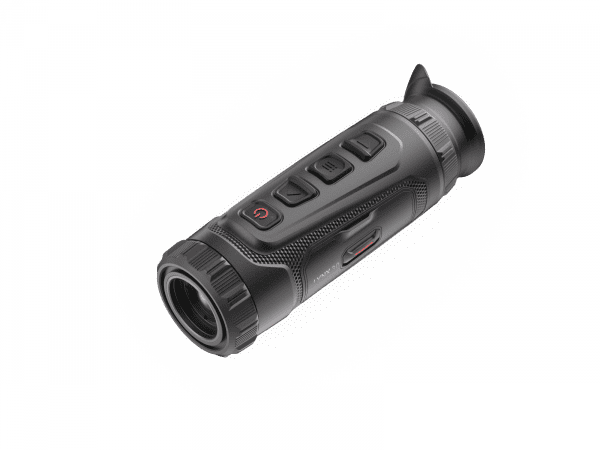

Hik Lynx 3.0 19mm 384px Thermal Monocular

The Lynx 3.0 , redefining entry-level thermal imagers.

The HIKMICRO Lynx 3.0 LH19 sets a new benchmark in portable thermal optics. Equipped with a 384×288 thermal detector and a 19mm F1.0 lens, it delivers 1.9x base magnification, a 13.8° field of view, and a 900-metre detection range, providing sharp detail and versatile coverage for professionals in the field.

Enhanced with AI-powered Image Pro 3.0 and Zoom Pro algorithms, the LH19 ensures superior contrast and detail recognition. Its HIKMICRO Shutterless Image System (HSIS) guarantees smooth, noise-free imaging , ideal for discreet and continuous observation.

Built with durability in mind, the LH19 weighs 331 grams and is powered by a replaceable 18650 battery, offering 4.5 hours’ runtime at -20°C. Compact, ergonomic, and performance-driven, it’s a premium choice for professionals demanding exceptional image quality in a lightweight body.

• Image Sensor VOx Uncooled Focal Plane Arrays
• Max. Resolution 384 × 288
• Frame Rate 50 Hz
• Pixel Interval 12 μm
• Response Waveband 8 μm to 14 μm
• NETD Less than 15 mK (@25°C), F#=1.0
• Lens (Focal Length) 19 mm, F1.0
• Focus Mode Focus Wheel
• Min. Focusing Distance 3 m
• Magnification 1.9 × – 15.2 × (8×)
• Field of View (H × V), Degrees / m @100 m 13.8° × 8.4° / 24.2 m × 14.7 m
• Detection Range 900 m
• Display 1920 × 1080, 0.49 inch, AMOLED
• Contrast Adjustment Yes
• Brightness Adjustment Yes
• Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil 6 mm
• Eye Relief 20 mm
• Diopter (Range) -5 D to +3 D
• Tone Adjustment Cold, Warm
• Zoom Pro Yes
• HSIS (HIKMICRO Shutterless Image System) Yes
• Image Pro 3.0 Yes
• Sync Pro Yes
• Battery Type Replaceable and rechargeable 18650 battery
• Protection Level IP67
• Weight 331 g with Battery
