Product Description

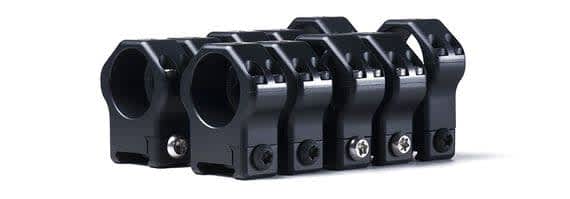

We have minimised the processes and parts with an integral recoil lug on the picatinny rings and only one floating Rail Clamp. The other side being integral to the ring.
They are manufactured from 6082-T6 aluminium and hard anodised to a depth of 40 microns. The width is 19mm to give maximum support to the scope.
They use Stainless Steel A2 Torx fixings, which are available in either silver or oxidised black with diameters of; 30mm in medium, high and extra high.
All areas are bevelled and rounded so that they will not damage the scope on fitting.
SKU
Description
Ring Torque Settings
Base Torque Settings
Height to Centre
DGC-30M
DGC Scope Rings 30mm Rings – Medium
25 In/Lb – 2.8 Nm
45 in/Lb 5.0 Nm
25mm
DGC-30H
DGC Scope Rings 30mm Rings – High
25 In/Lb – 2.8 Nm
45 in/Lb 5.0 Nm
29mm
| Size | High |
|---|
